Contor de debit

Brooks Instrument 1350/D2F1D1A6H020 (50-200 ln/h)

SKU: 3013

În Stoc

Livrare 24/7 posibilă

Selectați Condiția

Utilizat
Obținut din mediu de lucru

Fără TVA: €55,00 (1 disponibil)

Incl. TVA: €66,55

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Informații despre garanție

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Perioade de garanție în funcție de condiții

Nou 12 luni

Recondiționat 3 luni

Utilizat DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Descriere

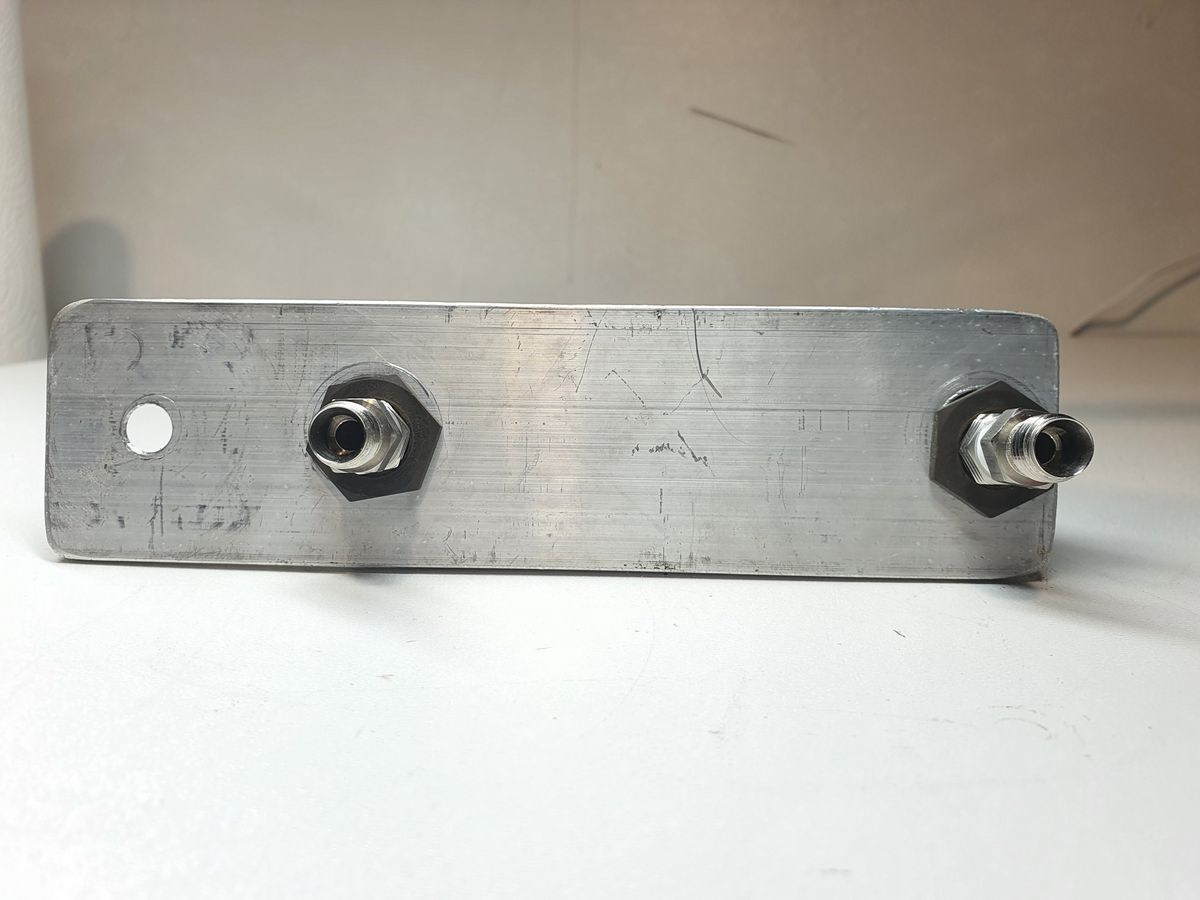

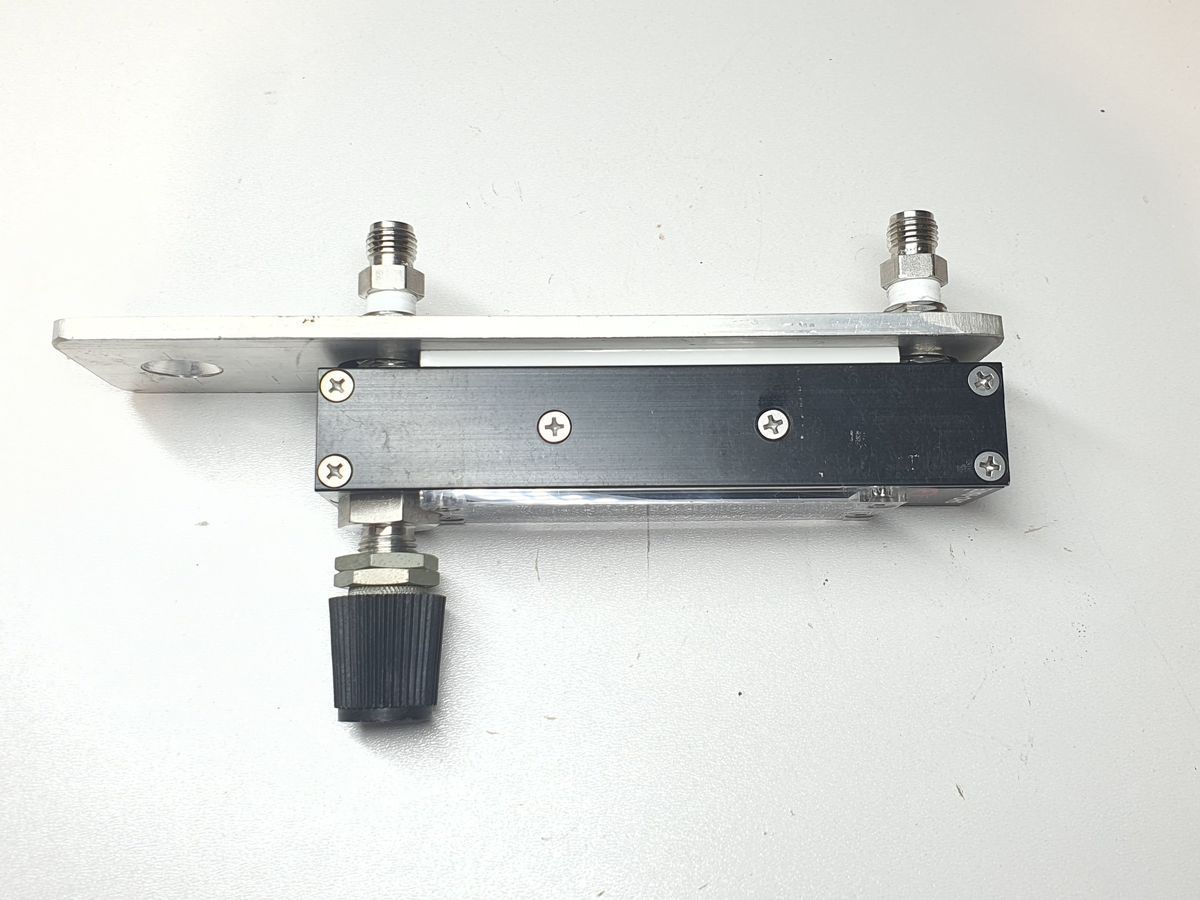

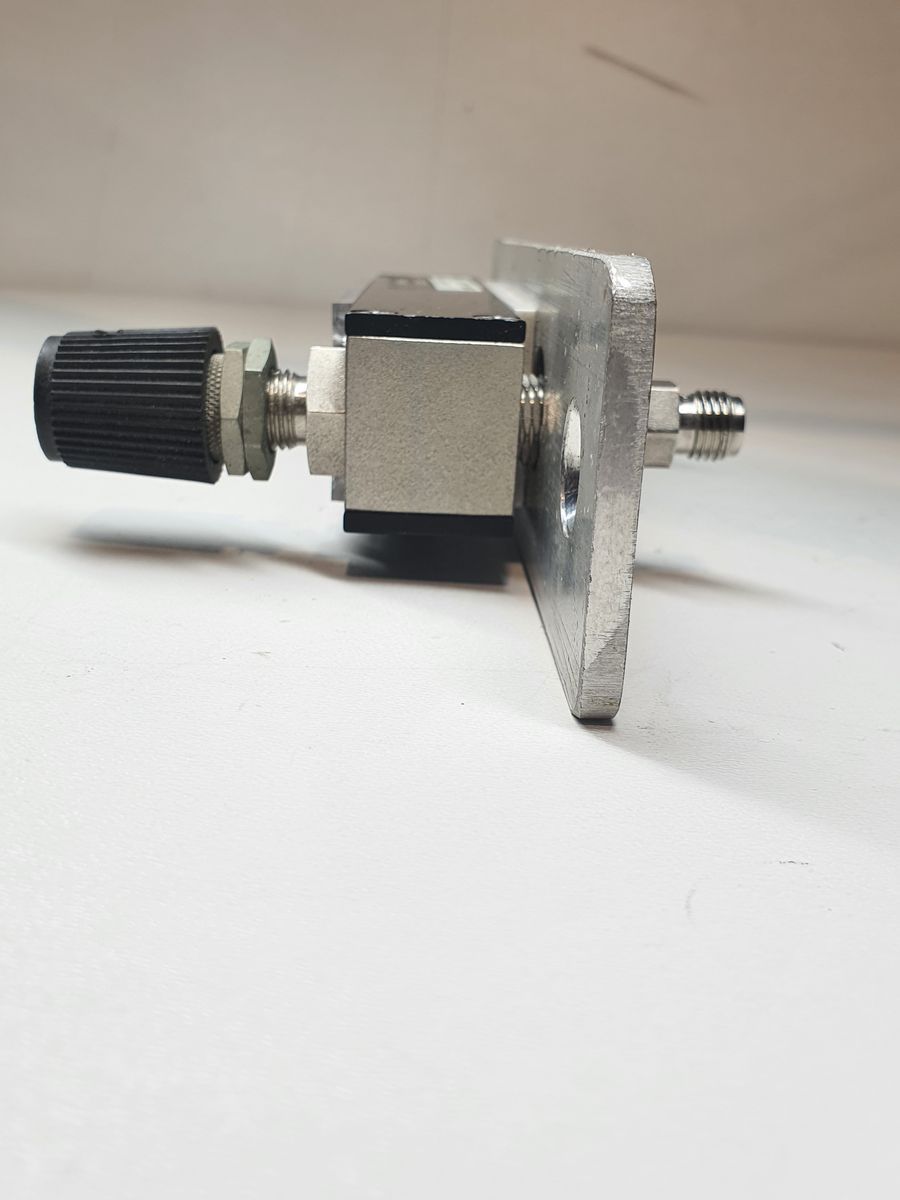

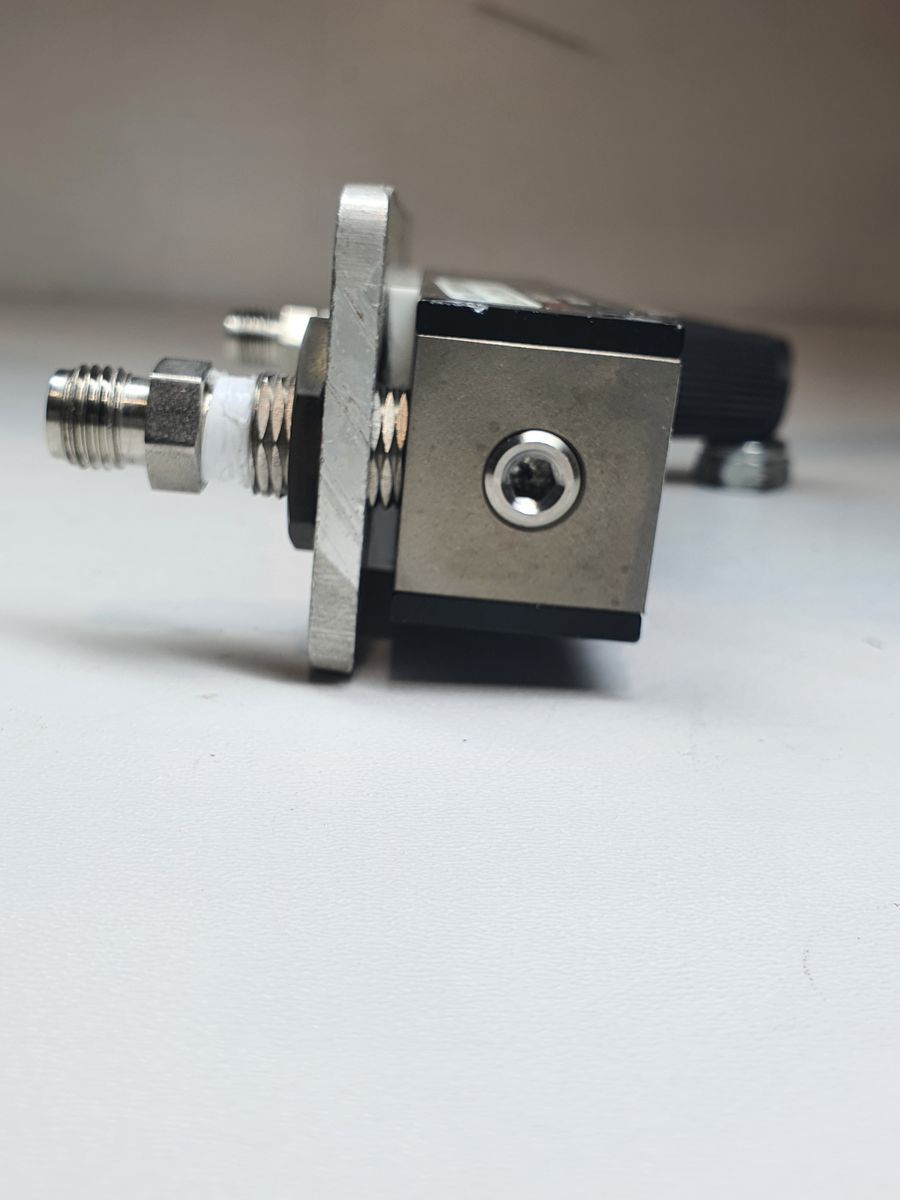

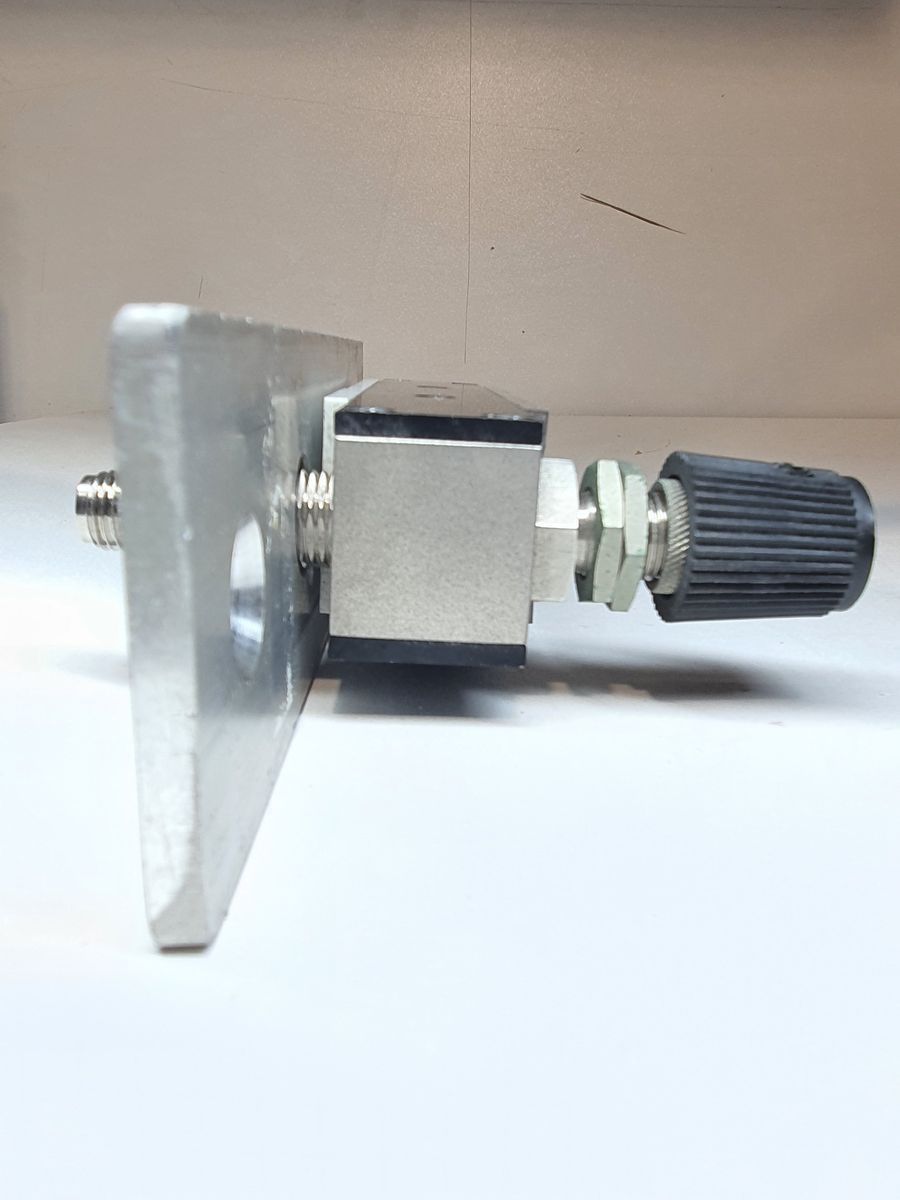

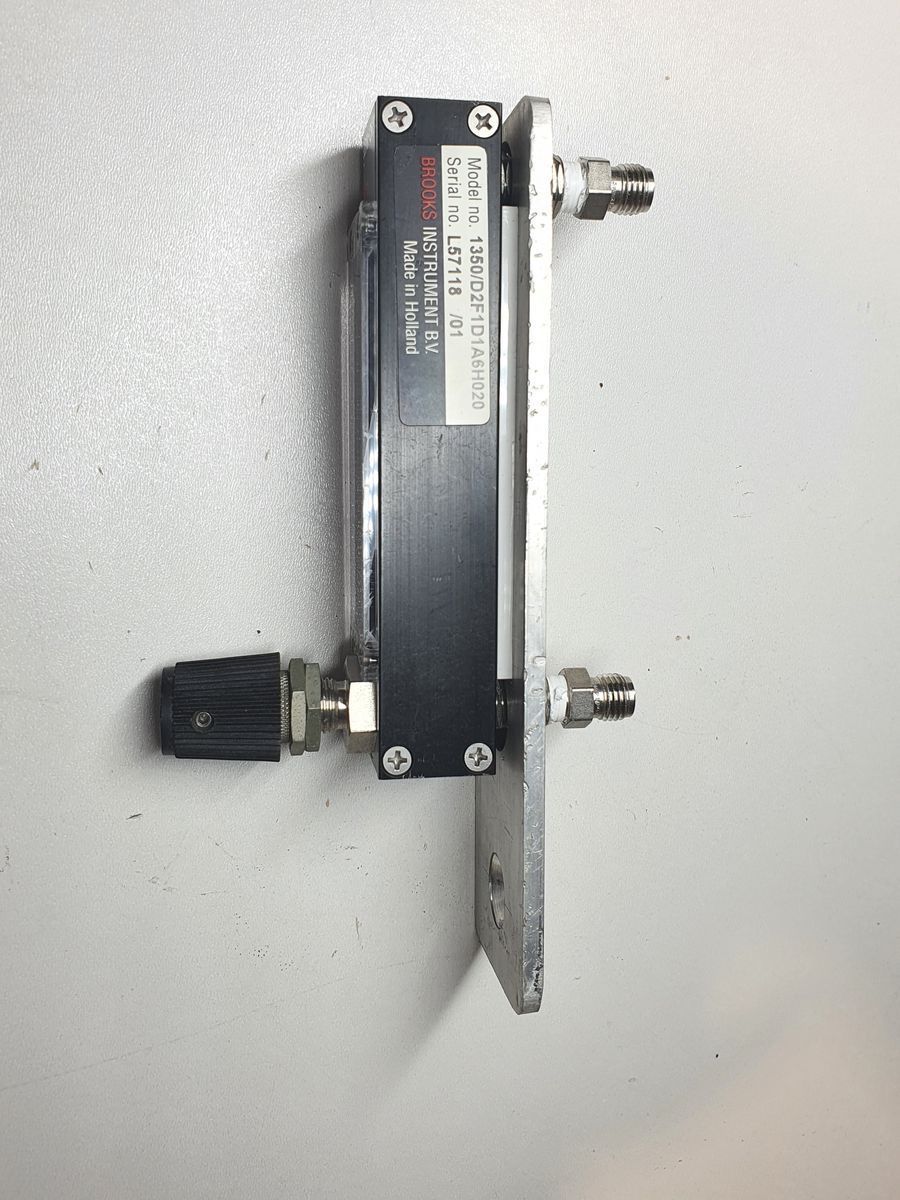

Brooks Sho-Rate™ 1350 Flow meter

Manufacturer: Brooks Instrument B.V.
Country of Manufacture: Netherlands

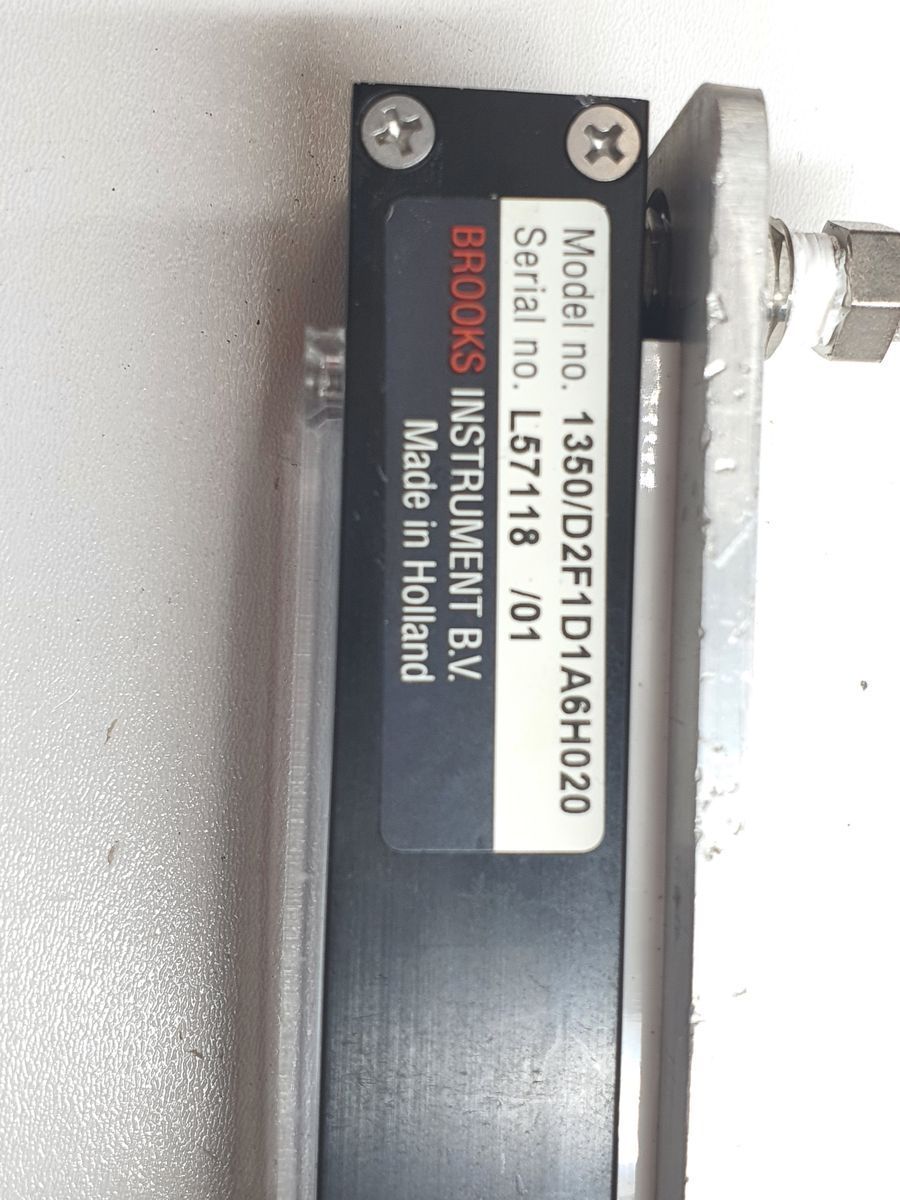

Model: 1350/D2F1D1A6H020
Product Type: Variable Area Flowmeter (Rotameter)

Parameter	Specification
Measurement principle	Float position (variable area)
Indication	Direct visual indication
Measured medium	Nitrogen (N₂)
Flow range	50–200 ln/h N₂ (per F1/D1 tube configuration)
Accuracy	Typically ±5% of full scale
Repeatability	Excellent repeatability (typically ±0.5% FS)
Calibration temperature	20 °C
Operating temperature range	1 °C to 121 °C
Inlet pressure (Pe)	0.4 bar
Metering tube material	Borosilicate glass
Float material	Stainless steel
Body / frame material	Aluminum
Seals	Viton®
Installation orientation	Vertical
Mounting	Panel mounting
Process connections	1/8" or 1/4" NPT (model dependent)
Connection location	Rear or side
Country of manufacture	Netherlands
PED compliance	SEP (Sound Engineering Practice)
