Valve

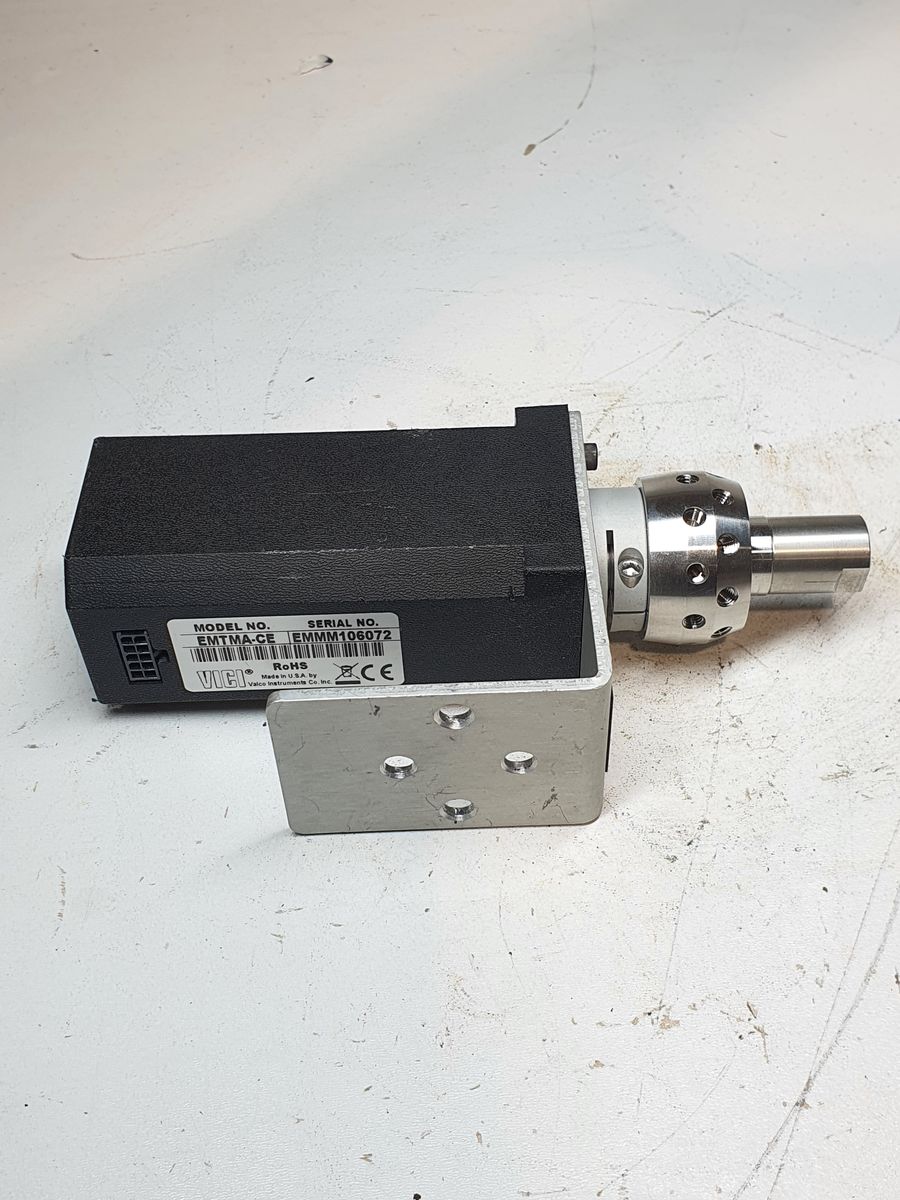

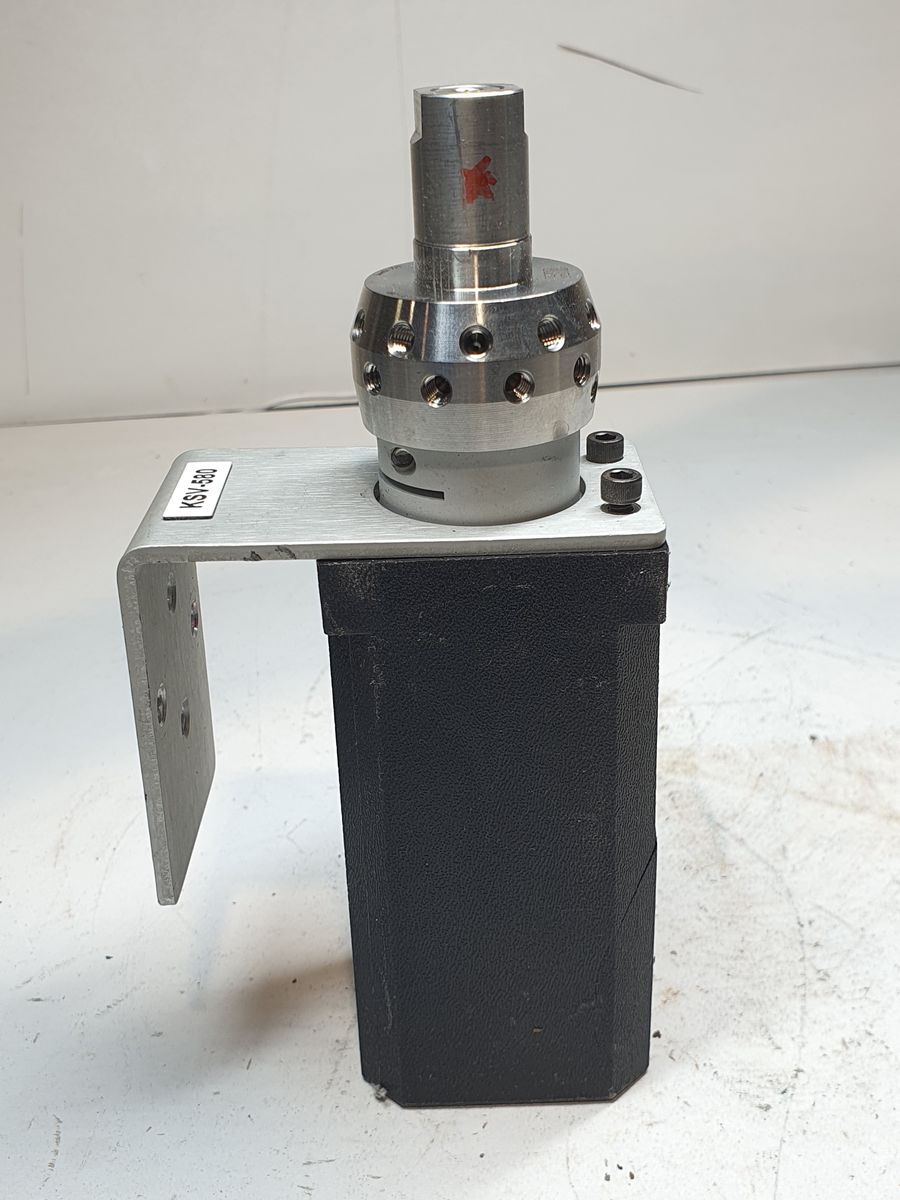

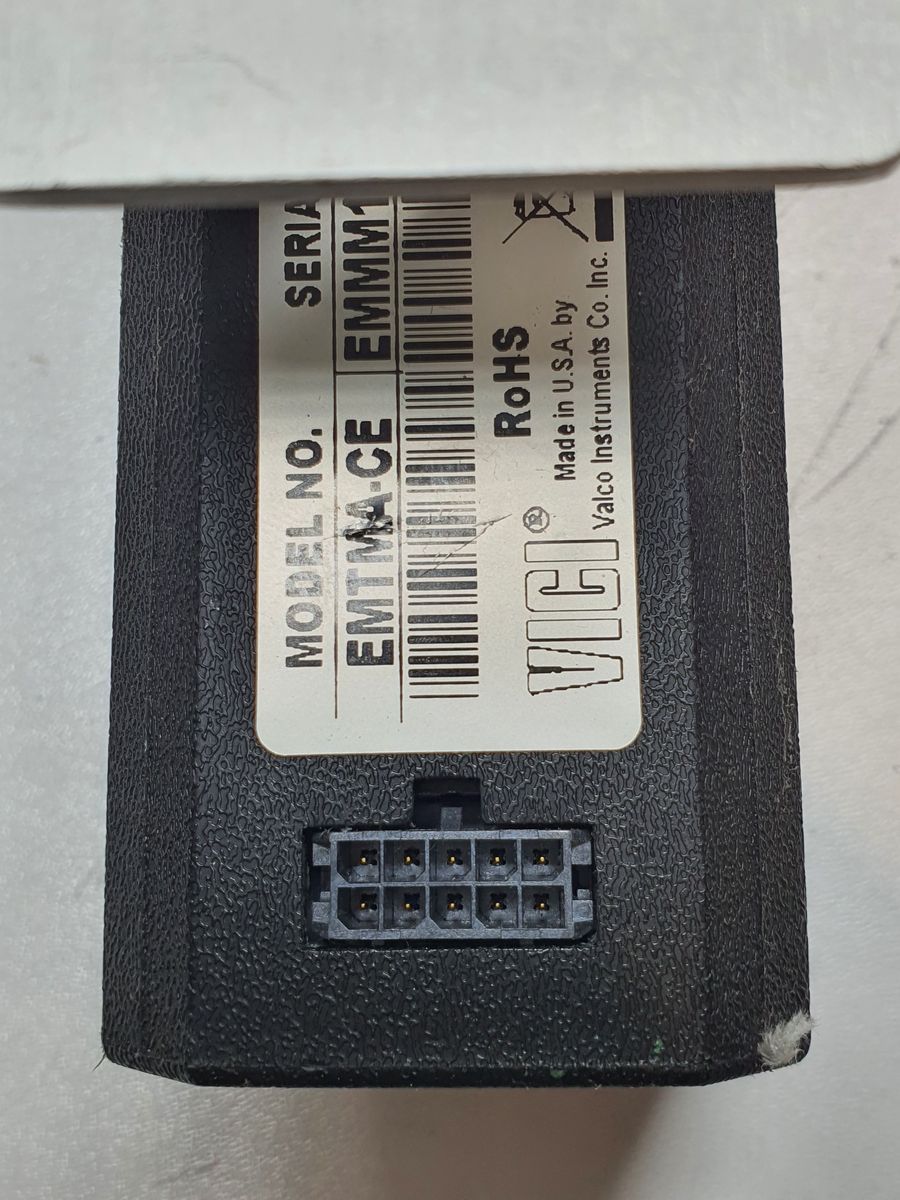

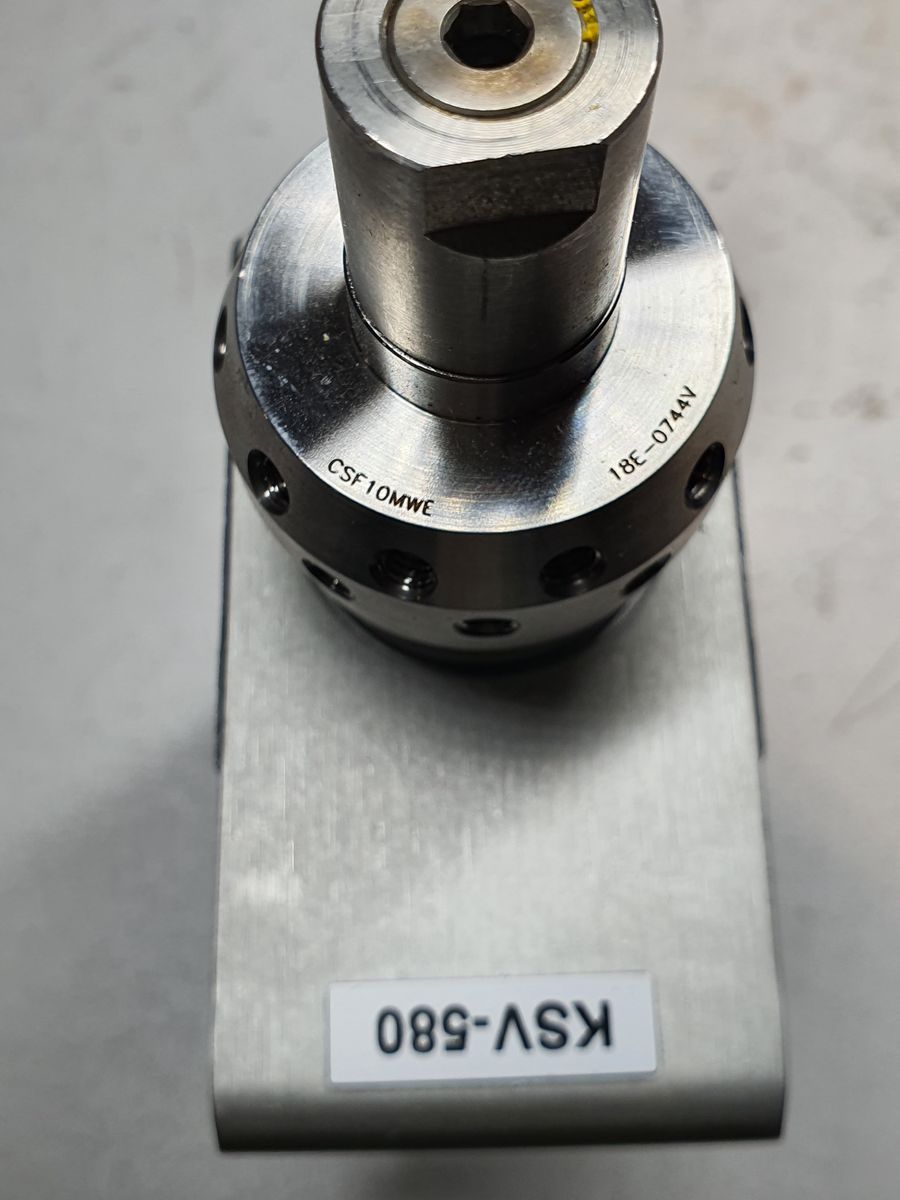

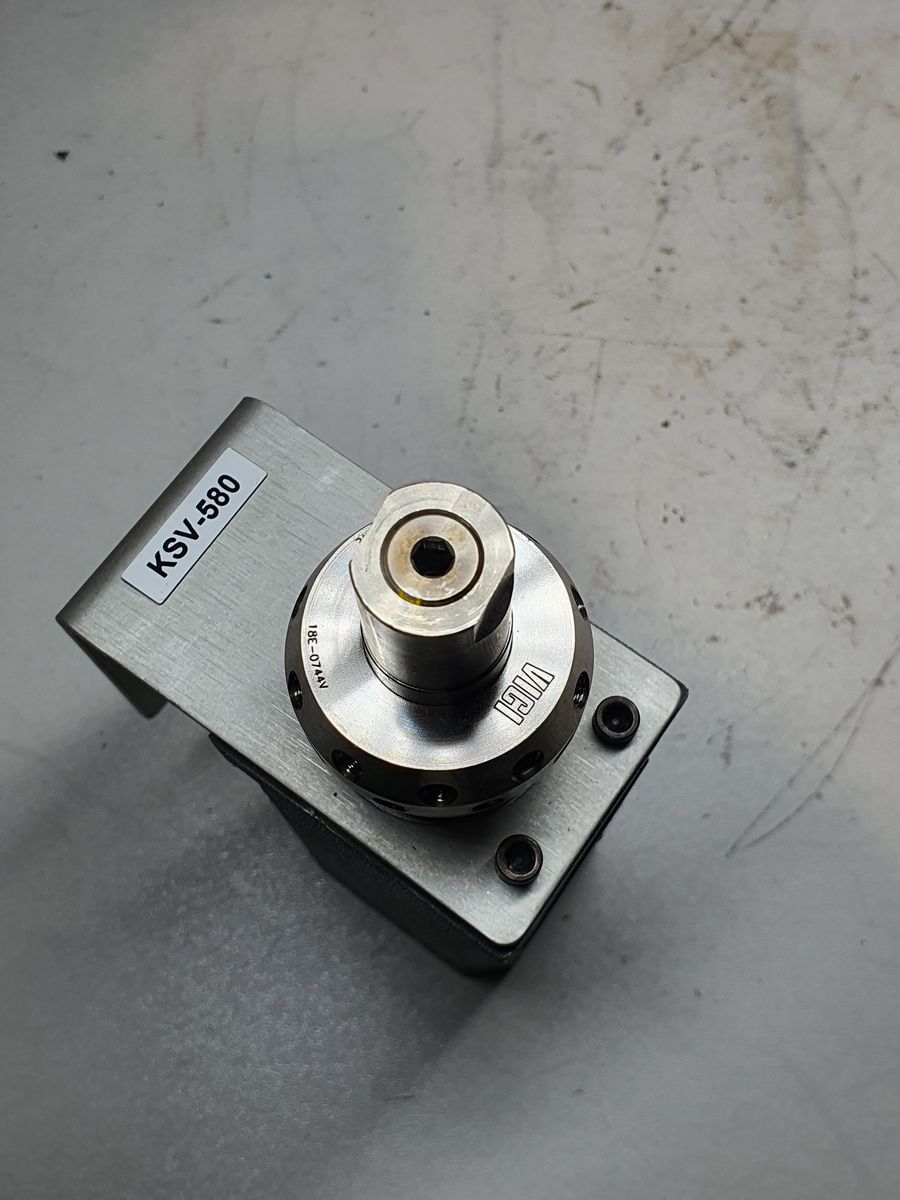

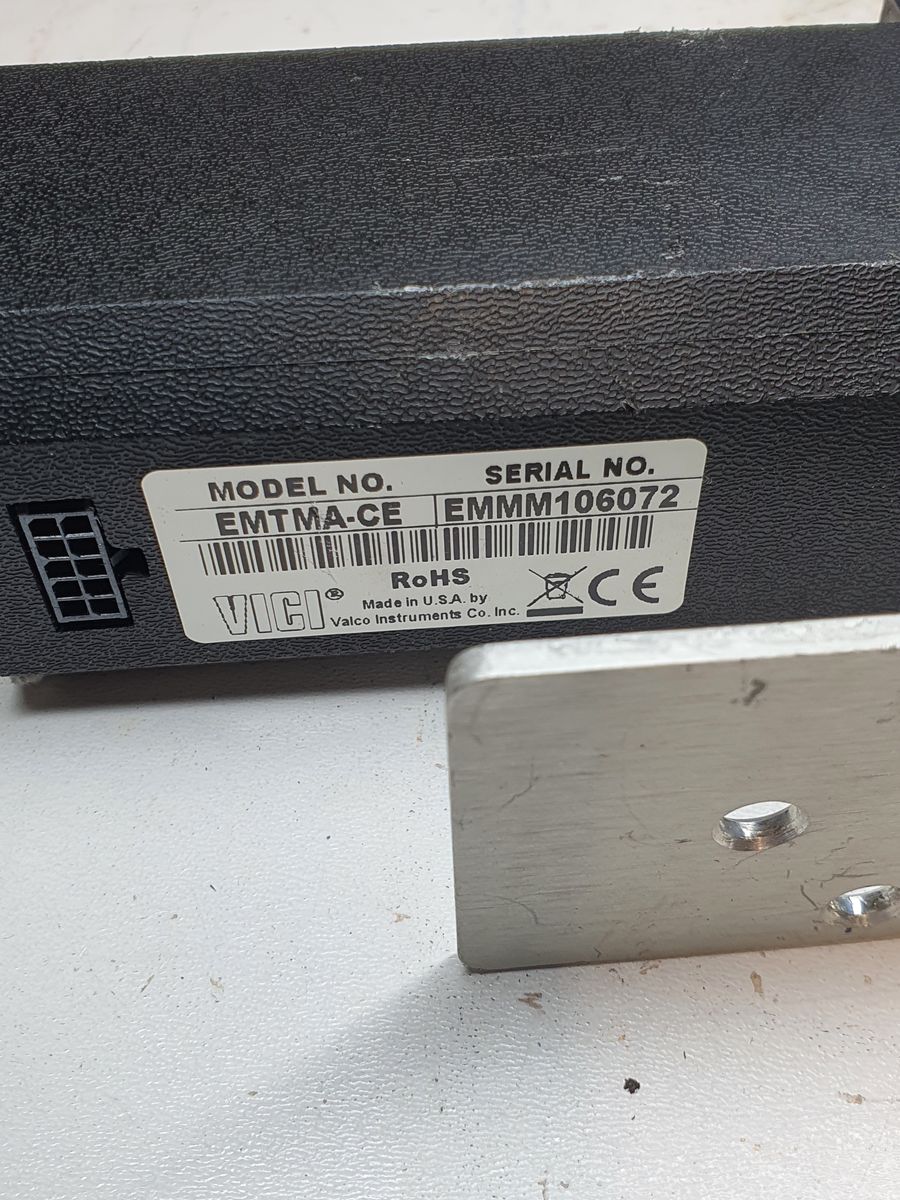

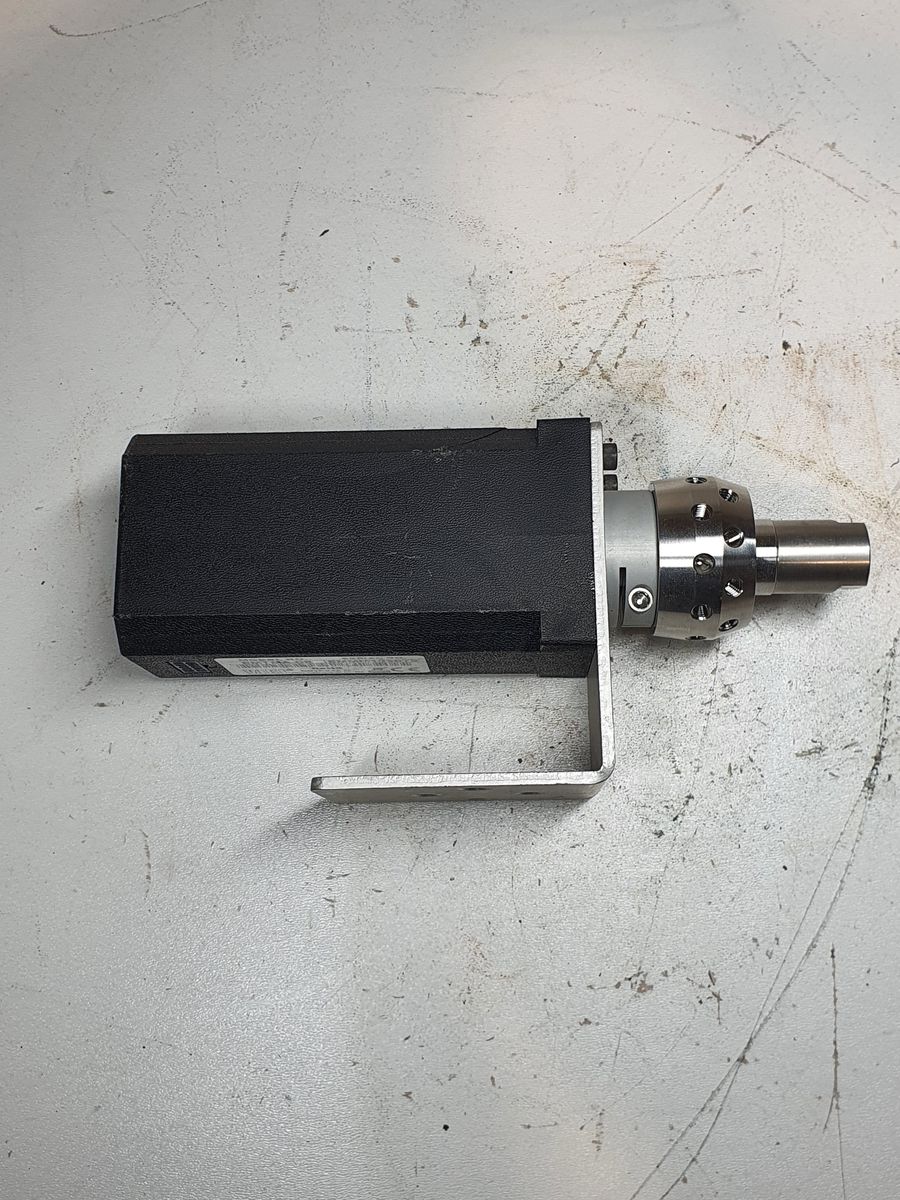

VICI Valco EMTMA-CE/ CSF10MWE
SKU: 2012
În Stoc
Informații despre garanție
Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.
VICI Valco EMTMA-CE / CSF10MWE – EMMM106072
| Parameter | Specification |
|---|---|
| Manufacturer / Brand | VICI Valco |
| Model Number | EMTMA-CE / CSF10MWE – E |
| Internal Reference | MMM106072 |
| Valve Type | Multiposition Selector Valve (MW-Valve) |
| Variety | Manual Selector |
| Number of Positions | 10 positions |
| Flow Path Design | Flow-Through Selector |
| Selector Type | SF (Selected stream routed to a common outlet; non-selected streams flow through individual outlets) |
| Actuation Method | Manual |
| Application | Gas chromatography (for Gas) |
| Fitting Size | 1/16 in |
| Port Diameter | 1.0 mm |
| Material (Wetted Parts) | Stainless Steel Nitronic 60 (N60) |
| Maximum Operating Temperature | 200 °C |
| Maximum Operating Pressure | 200 psi |
| Direction of Operation | Incremental stepping through continuous revolutions |
| Rotor Design | Preload design allows rotor inspection or replacement without removing valve from actuator |
| Alignment | Manual alignment (permanent alignment applies only to electric actuators) |
| Typical Use | GC stream selection and routing |
| Industry Category | GC Selectors / Multiposition Valves |
×
![]()
